| Price | RM4,400.00 |
| Brand | Palmer |
| Size (L x W x H) | 60 cm x 38 cm x 20 cm |
| Availability | In Stock |
| Quantity |
|

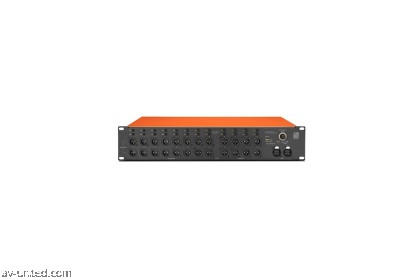

Palmer GA MKII Grand Audition MKII Switcher
- 24 switchable balanced line outputs
- Intuitive browser-based control software
- Individual level control on each output
- Mono and stereo modes
- Multiple channel selection
- High-quality analogue signal path
- Instant channel switching with no noise or interference
- XLR line inputs and built-in USB media player
- Up to three devices cascadable
| Product type | Switches |
| Type | Analog |
| Signal processing | Analog |
| Ethernet Functions | Yes |
| Inputs | 2 x balanced |
| Outputs | 24 + 2 balanced |
| Controls Front panel | 1 x Encoder pushbutton , 24 x pushbutton |
| Display elements front side | 2 x signal source LED (XLR / Player , Dual-color signal/clip LED , LED ring for main/channel volume with 0dB and mute LED indicator |
| Front Panel connectores | 2 x XLR 3 pin female , 24 x male XLR socket |
| Controls Element Back Panel | mains voltage selector , Power On/Off , reset |
| Connections rear side | 2 x XLR , 2 x XLR 3 pin female , 3-pole IEC mains connection (mains socket) , Micro-USB for service purposes , RJ45 (Ethernet) , USB stick |
| Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
| Fuse | T 630 mA 250V |
| Power consumption | 65 W |
| Ambient temperature ( in operation ) | 0 - 40 °C |
| Installation Height | 19" / 2 U |
| Dimensions (W x H x D) | 482,6 x 89,4 x 282,3 mm |
| Housing material | Metal |
| Cabinet surface | Powder-coated |
| Weight | 5,7 kg |
Highlight of GrandAudition MK2
The browser-based remote can be controlled on a tablet or laptop, offering maximum operating convenience. Ethernet and WLAN-capable devices can be used for complete configuration and control of the unit, including channel naming, media player, and other practical functions.
The ability to individually adjust the level for each output and its quick and noiseless switching mechanism, makes it possible to accurately compare loudspeakers and help you reliably guide your customers to select the right loudspeaker. Routing applications that use different levels for each output can also be set up, and a fully analogue signal path with the highest quality is also of course guaranteed with Palmer.
If necessary, you can cascade units to triple the impressive number of 16 channels plus 8 outputs and thus manage even the largest routing scenarios for monitors, such as in presentation areas. You can also use the subwoofer outputs to connect additional loudspeakers without experiencing any technical drawbacks.
In addition to powered loudspeakers, passive loudspeakers can be incorporated with power amps. Signals can also be distributed over multiple line outputs for other applications, for example, by connecting as many as 24 headphone amplifiers to one source signal - an invaluable aid in conference technology and at trade fairs. And to top it all off, GrandAudition MK2 performs remarkably well in measuring laboratories.
In short, GrandAudition MK2, with its clearly arranged features and ease of use, offers comfortable loudspeaker routing with professional sound neutrality.
