Radial Engineering StageBug SB-2 Compact Passive DI
Price RM580.00
Brand Radial Engineering
Size (L x W x H) 16 cm x 11 cm x 8 cm
Availability In Stock
Quantity
Description
Highlight
  • Passive DI for bass, acoustic and keyboard
  • Ultra compact to fit in your guitar case
  • Plug & play easy to use feature set
  • Transformer isolation eliminates noise

Passive Direct Box

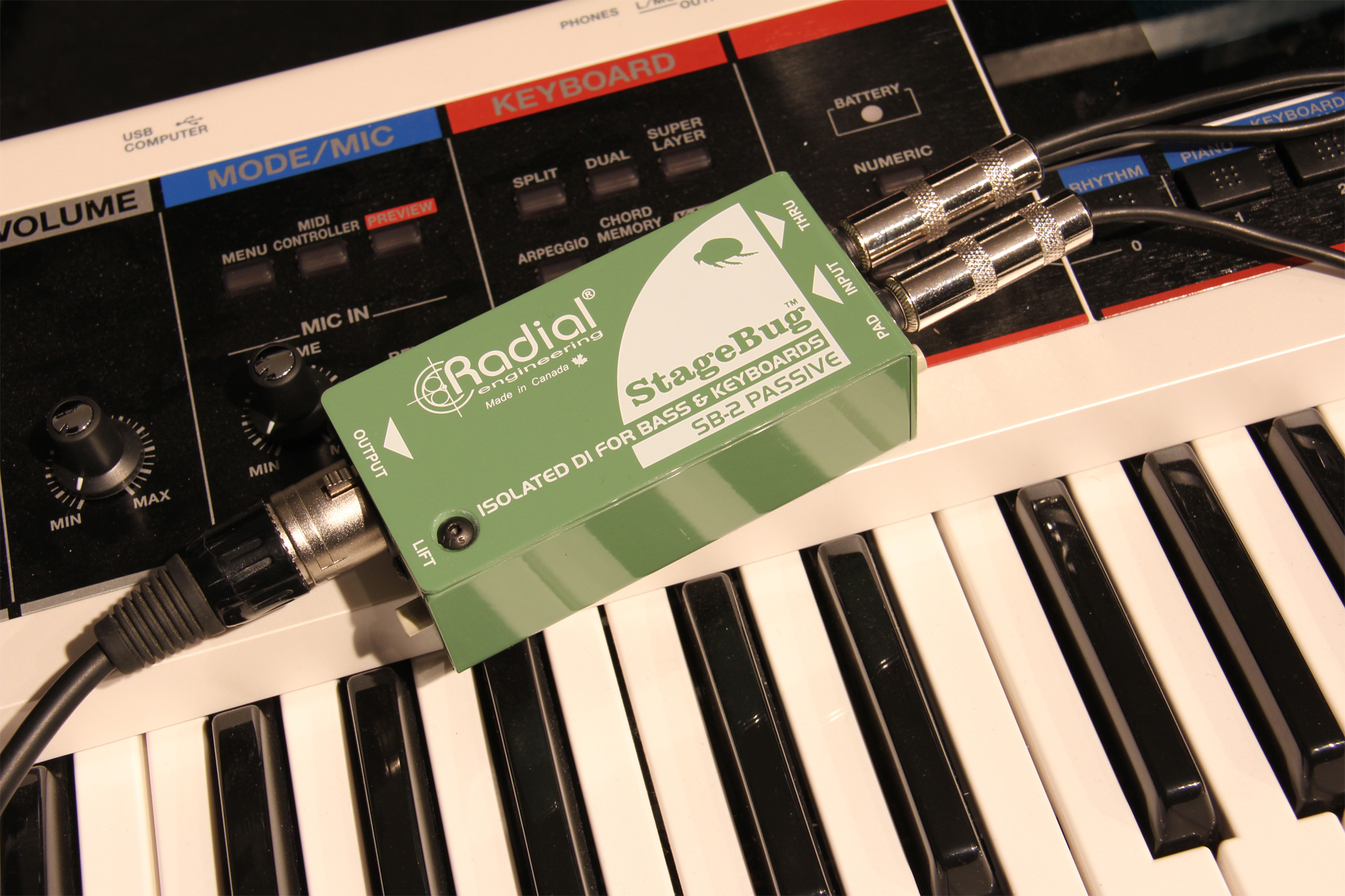

The StageBug SB-2 is a compact passive direct box that is perfect for active basses and keyboards, is small enough to fit inside an instrument case, and features a stereo to mono mix function to save mixer channels.

Small size and big performance

The compact design begins with a ¼" input and thru-put to feed the on-stage amp. This connects to the custom made Eclipse ET-DB3 transformer which performs the impedance matching and balances the signal. When using extra high output instruments, a -15dB pad can be inserted into the signal path. This enables the SB-2 to be used with active basses and digital pianos that often tend to overload the input side of the interface. An innovative stereo-to-mono merge function provides a convenient way to connect stereo keyboards and computers without having to reset the source for mono operation, saving time and input channels on the PA. The SB-2 output features an XLR wired to the AES standard with pin-2 hot. Once connected, the SB-2 delivers a smooth warm sound reminiscent of older vintage gear. The Eclipse ET-DB3 transformer is magical in its ability to handle extreme signal levels with a natural compression that is pleasing to the ears. The transformer also helps eliminate hum and buzz caused by ground loops by isolating the input from the output. This is augmented with a ground lift switch that lifts pin-1 on the XLR for quiet, professional results.



Specifications
Audio circuit type: Passive, transformer based
Transformer: Eclipse ET-DB3, 12:1 ratio
Number of channels: 1
Frequency response: 20Hz ~ 20KHz (± 0.5dB)
Dynamic range: 115dB
Total harmonic distortion: 0.005% @ 1kHz
Phase Deviation: 3° @ 100Hz; 8° @ 50Hz
Input Impedance: 140k Ohms, unbalanced
Output Impedance: 1k Ohms, balanced
Maximum Input: +20dB
Features
Input pad, Ground lift
Input Connectors: 1/4"
Output Connectors: XLR
General
Construction: 14 gauge steel chassis & outer shell
Size (L x W x D): 4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm)
Weight: 0.55 lbs (250 grams)
Shipping size (L x W x D): 8" x 5" x 3" (203mm x 127mm x 76mm)
Shipping weight: 0.8 lbs (365 grams)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
